Utility rack · 4U
Digital Wireless Mics
Four microphone channels, connected directly to your Dante show network.
Shared receiver-front illustration. The correct rack-specific rear patch appears in How it connects.
The complete packing list
What you get
The rack hardware and the essentials that travel with it—configured for your system.
Inside the rack
The reference build
2× Sennheiser EW-DX EM 2 Dante
Two dual-channel Dante receivers provide four microphone channels. The shared EW-DX front reference photo does not show the Dante rear connectors.
CLR power distribution
Rack-mounted power distribution and internal power wiring, specified for the installed equipment.
Also included: the CLR enclosure, fitted backplate, mounting hardware and internal power/signal patching for the agreed reference build. Product pictures identify the equipment family; final models and variants follow your quotation.
In the kit
Ready to connect
Your configuration sets the packing list — The rack hardware is listed here. Microphone transmitters, capsules, bodypack receivers, earpieces, external antennas and batteries are supplied only in the quantities and regional variants agreed with your configuration. Receiver antenna distribution is specified with the build; no unconfirmed combiner or distributor model is implied by the reference image. Dante receiver features do not establish a redundant rack/network topology. Travel bags and cases are optional transport choices, not included by default.
Technical specifications
Four channels
Built for your network
Reference configuration: two Sennheiser EW-DX EM 2 Dante dual-channel receivers in a 4U CLR rack. Microphone transmitters, frequency variants, antenna distribution and the final patch are configured for your show.
- Rack format
- 4U CLR rack
- Receivers and channels
- 2 × Sennheiser EW-DX EM 2 Dante · 2 channels each · 4 simultaneous microphone channels
- Digital audio output
- Dante · 24 bit · 48 or 96 kHz
- Analog outputs on each receiver
- 2 balanced XLR-3M outputs, up to +18 dBu; 2 unbalanced 6.3 mm outputs, up to +12 dBu
- Analog rear patch
- The illustrated rear has a Dante handoff, not analog XLR outputs; any alternative analog patch is specified separately
- Audio performance
- 20 Hz–20 kHz (−3 dB) · 134 dB system dynamic range
- Wireless-system latency
- 1.9 ms; Dante network transport and any downstream processing are additional
- RF reception
- Digital wireless with switching diversity · up to 88 MHz tuning bandwidth, depending on band variant
- Microphone transmitters
- Compatible Evolution Wireless Digital handheld or bodypack transmitters; microphone capsules and bodypack connectors chosen to suit the performer
- Network functions
- Receiver control plus Dante audio; Single Cable, Split and Redundancy modes supported by the receivers, with the final topology agreed for the system
- Antenna system
- Two BNC RF inputs per receiver; receiving antennas, distribution and coaxial cable loss designed for the operating band and stage
- Receiver power
- 11–13 V DC or IEEE 802.3af Class 0 PoE · maximum 12 W per receiver; rack-level supply and backup options specified separately
- Transport
- Final connector counts, packed dimensions and weight confirmed for the complete configuration
Receiver connections: Use either the XLR or the unbalanced jack output for each channel, as directed by Sennheiser. The reference rear patch shows one Dante socket; a redundant primary/secondary handoff must be specified separately. Dante redundancy is a receiver/network capability, not a promise of redundant AC feeds or a fully duplicated RF system.
Manufacturer references: EW-DX EM 2 Dante specifications ↗ · Receiver audio connections ↗ · EW-DX system specifications ↗
Compatibility & touring regions
Match the wireless
Then plan the route
EW-DX EM 2 Dante receives digital wireless microphone signals and outputs their audio onto Dante. Choose compatible EW-DX handhelds or bodypacks in the matching frequency-range variant. A shared frequency alone does not make an unrelated transmitter compatible.
Common EW-DX tuning variants include Q1-9 (470.2–550 MHz), R1-9 (520–607.8 MHz) and S1-10 (606.2–693.8 MHz). Other variants cover different regional windows. These are hardware tuning ranges, not a list of frequencies that are legal in every country.
Select receiving antennas and distribution with a usable range covering the chosen band; antenna bandwidth cannot extend the receiver’s tuning range. Capsule mounts and bodypack input accessories must also match the transmitter.
Touring configuration starts with your destinations. Confirm current spectrum permissions, licensing and radiated-power limits with the relevant local authority or RF coordinator, then coordinate usable channels at each venue. One band variant is not promised to work legally or without interference everywhere.
Planning references: Receiver/transmitter compatibility guidance ↗ · International Frequency Advisor ↗
Plan your wireless configuration →Portable by design
Rack to road
4U reference format. Plan a protective Peli case around the complete build.
01 / Peli case
Protection for the road
A fitted Peli case adds rigid protection, with an insert and accessory space planned for your complete rack.
Optional transport, configured to order. These drawings illustrate travel formats, not this rack’s exact insert or included accessories. Final packed dimensions and weight are confirmed with your build. Airline cabin acceptance depends on the carrier’s current rules.
The rear patch
How it connects
- Compatible microphone transmitters send four channels over digital RF to the two EW-DX receivers.
- Dante carries the receiver audio to a compatible console or network-audio endpoint.
- Receiver control and the receiving antenna system are configured around the production and regional RF band.
- Audio
- DANTE is the network-audio handoff for the four microphone channels.
- Control
- CTRL is the receiver-control network patch. Network mode and switch configuration follow the build.
- RF & power
- One ANT socket on the illustrated rear · AC IN. The complete receiving antenna system is selected separately.

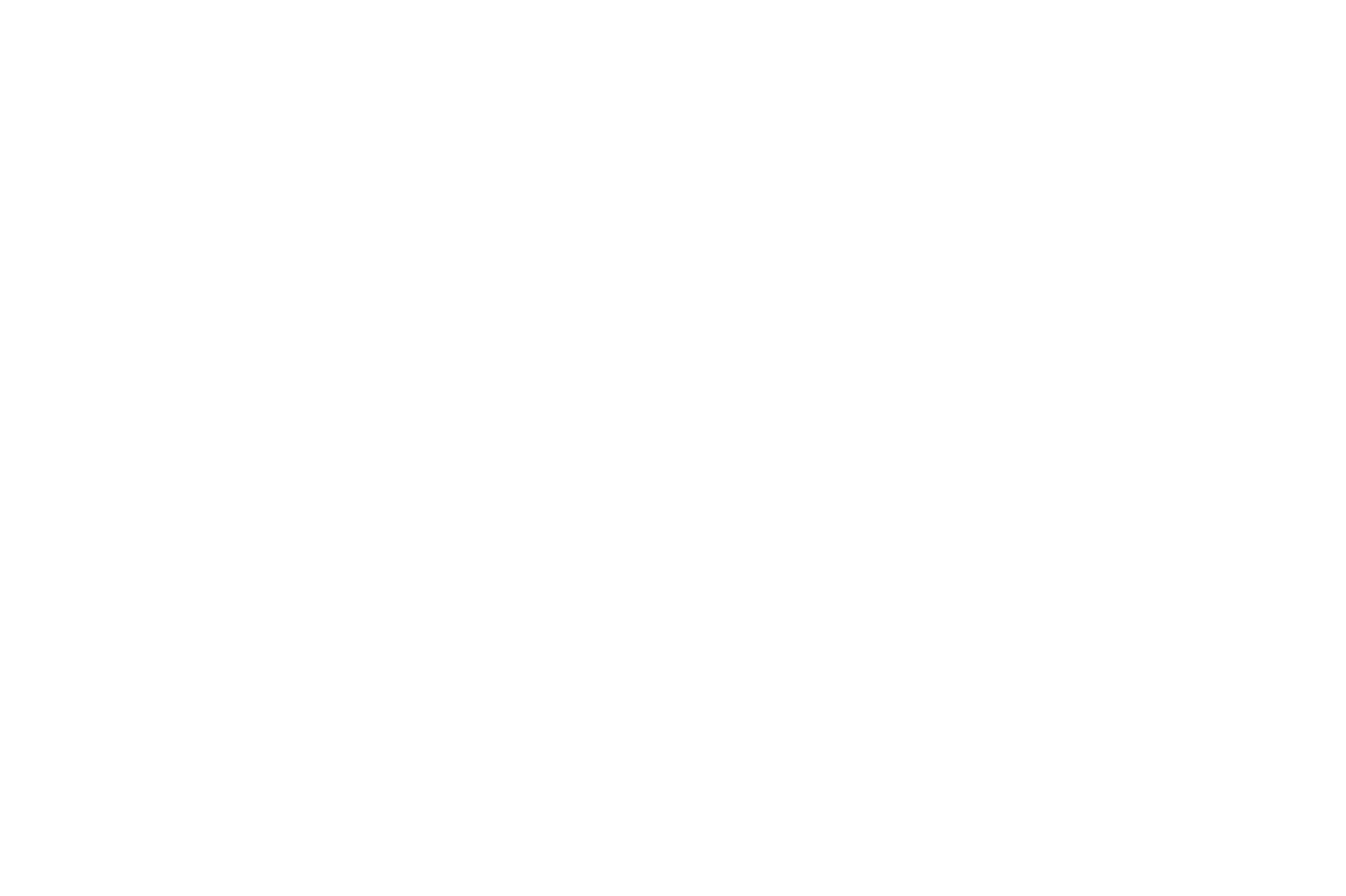

The drawing shows the reference connector layout, not every connection on each internal device. Final routing, cable types and regional equipment variants are confirmed for your build.
