Utility rack · 4U

In Ears Digital

Four stereo monitor mixes. One Dante handoff. Your in-ears, ready for the stage.

In Ears Digital reference rack with two Lectrosonics M2T transmitters, RF combiner and power

The complete packing list

What you get

The rack hardware and the essentials that travel with it—configured for your system.

Inside the rack

The reference build

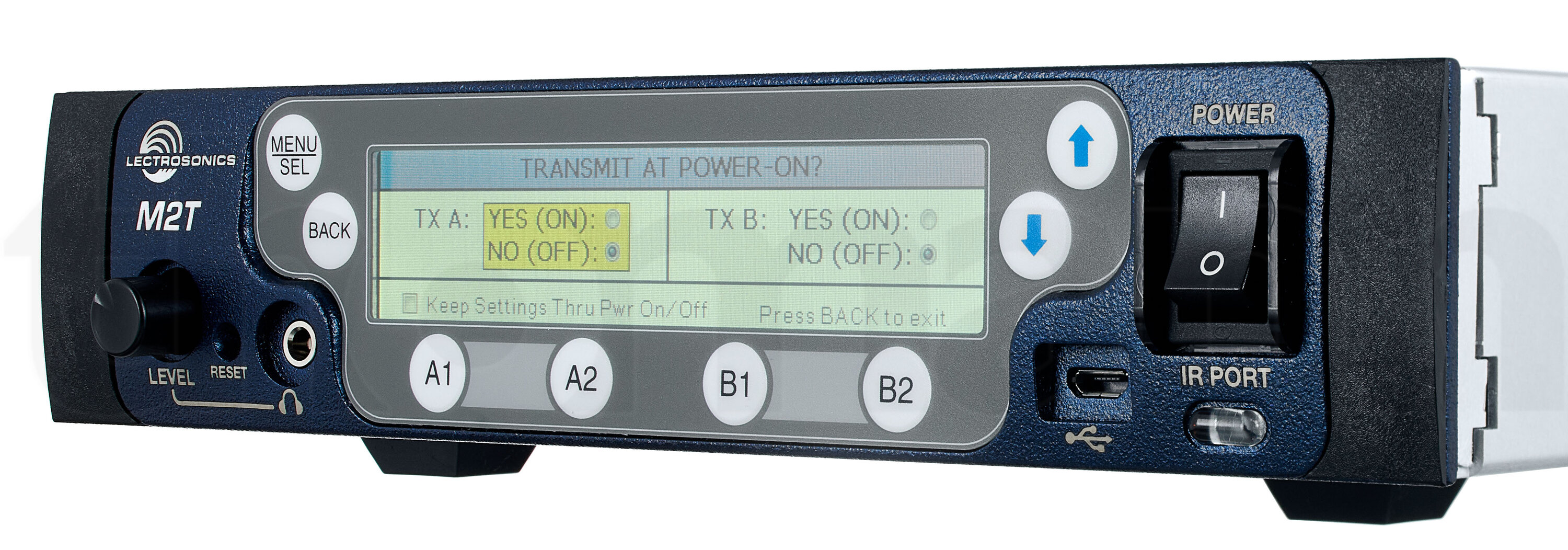

  • 2× Lectrosonics M2T reference product photograph

    2× Lectrosonics M2T

    Two Dante-equipped M2T transmitters provide four independent stereo monitor mixes across four RF carriers.

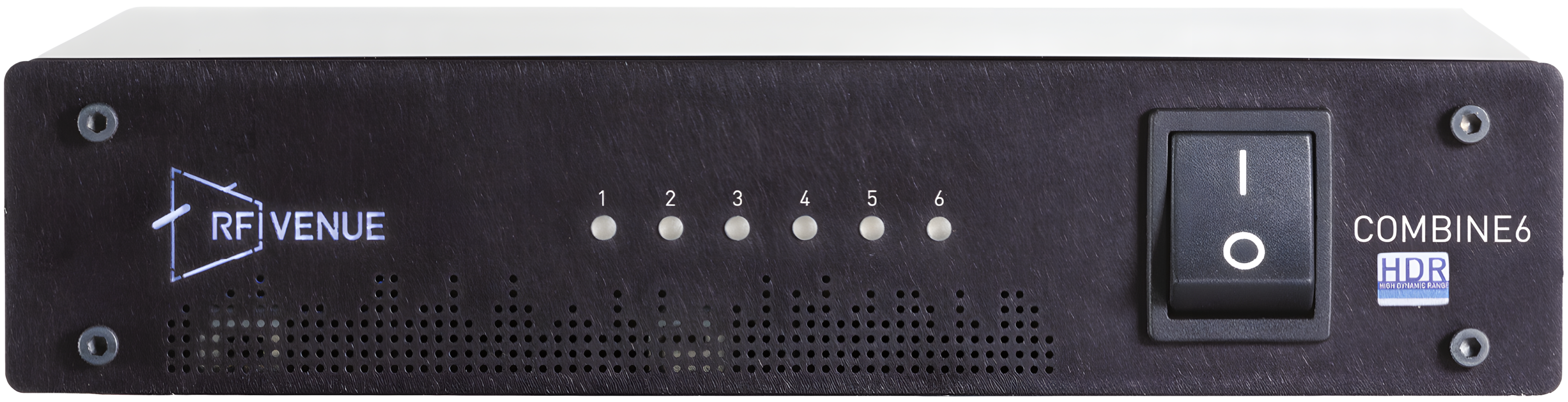

  • RF Venue COMBINE6 HDR reference product photograph

    RF Venue COMBINE6 HDR

    One six-input transmitter combiner joins the fitted IEM transmitters to the rear antenna connection.

  • CLR power distribution reference product photograph

    CLR power distribution

    Rack-mounted power distribution and internal power wiring, specified for the installed equipment.

Also included: the CLR enclosure, fitted backplate, mounting hardware and internal power/signal patching for the agreed reference build. Product pictures identify the equipment family; final models and variants follow your quotation.

In the kit

Ready to connect

powerCON TRUE1 to AC power lead reference

Configured kit

Power

A power lead matched to the rack inlet and the regional plug agreed for your build. TRUE1 lead shown as a reference.

Your configuration sets the packing list — The rack hardware is listed here. Microphone transmitters, capsules, bodypack receivers, earpieces, external antennas and batteries are supplied only in the quantities and regional variants agreed with your configuration. The M2T Dante connections are loop-through, not redundant primary/secondary networks. No computer or external console is included. Travel bags and cases are optional transport choices, not included by default.

Technical specifications

The numbers behind
your monitoring

Reference configuration shown: two Lectrosonics M2T transmitters, one RF Venue COMBINE6 HDR and a CLR power module. This digital-audio build requires Dante-equipped transmitter variants.

Monitor mixes
4 independent stereo mixes, or up to 8 mono channels using compatible receiver mix modes
RF carriers
2 per M2T · 4 across the illustrated rack
Dante inputs
4 audio receive channels per Dante-equipped M2T · 8 total
Digital-source latency
Manufacturer-specified 1.0 ms plus Dante network latency; upstream mixer processing is additional
Bodypack receivers
Compatible Lectrosonics Duet receivers; frequency band and compatibility mode must match. Receiver model and quantity are configured to order
Transmitter RF power
M2T / M2T/E01: selectable 10, 25 or 50 mW per carrier; other regional variants differ
Antenna combining
6 BNC inputs → 1 antenna output; 4 inputs used for the reference configuration
Combiner frequency range
470–608 MHz USA/Canada variant · 470–698 MHz international variant
Combiner input limit
60 mW maximum per input · 50 dB typical input isolation
Antenna cabling
50 Ω low-loss coax with BNC connections; antenna bandwidth and cable loss matched to the selected RF band
Rear patch shown
Dante · control 1 · control 2 · antenna · AC input

Network setup: M2T’s two Dante sockets are switched loop-through ports, not redundant primary/secondary connections. Do not connect them to two separate Dante networks.

Exact transmitter variants, receiver firmware, RF cabling and rack power topology are agreed before build. The illustration is not a promise of redundant AC feeds, an included external antenna or a fixed bodypack quantity.

Manufacturer references: Lectrosonics M2T manual ↗ · M2T technical data ↗ · Duet M2Ra receiver ↗ · COMBINE6 HDR specifications ↗

Regions & model selection

The right Duet system
for your tour

M2T is a family, not a worldwide frequency licence. Lectrosonics lists the M2T A1B1 at 470.100–607.975 MHz, M2T/E01 A1B1 at 470.100–614.375 MHz, and M2T/E01-B1C1 at 537.600–691.175 MHz. These are hardware tuning ranges, not a list of frequencies permitted at every destination.

Choose Dante-equipped transmitters, matching receiver bands and compatible firmware together. Non-Dante M2T variants cannot accept this rack’s network-audio feed. For encrypted operation, receiver mode and keys must also match.

Check the usable overlap of transmitter, receiver, combiner and antenna—not just the widest advertised range. For example, a USA/Canada combiner ends at 608 MHz even when a transmitter can tune higher. Keep each combiner input within 60 mW and the complete antenna system within the local permitted radiated-power limit.

Have the local RF coordinator verify current permissions, licences and clear frequencies for every stop before the tour. Some routes need different regional equipment; no single model is guaranteed to cover every country.

Plan your touring configuration →

Portable by design

Rack to road

4U reference format. Plan a protective Peli case around the complete build.

01 / Peli case

Example CLR rack and accessories fitted inside a protective Peli case

Protection for the road

A fitted Peli case adds rigid protection, with an insert and accessory space planned for your complete rack.

Optional transport, configured to order. These drawings illustrate travel formats, not this rack’s exact insert or included accessories. Final packed dimensions and weight are confirmed with your build. Airline cabin acceptance depends on the carrier’s current rules.

The rear patch

How it connects

  • The console or compatible Dante source sends eight channels to the two M2T transmitters.
  • The transmitters create four independent stereo mixes; the COMBINE6 HDR joins their RF outputs to one antenna path.
  • Compatible bodypacks receive the selected mixes. Dante loop-through is not redundant networking.
Audio network
DANTE: eight audio channels for four stereo mixes. The reference backplate has one Dante socket.
Control
CTRL 1 / CTRL 2 provide the configured transmitter-control network connections.
RF & power
One ANT connection from the transmitter combiner · AC IN for the rack.

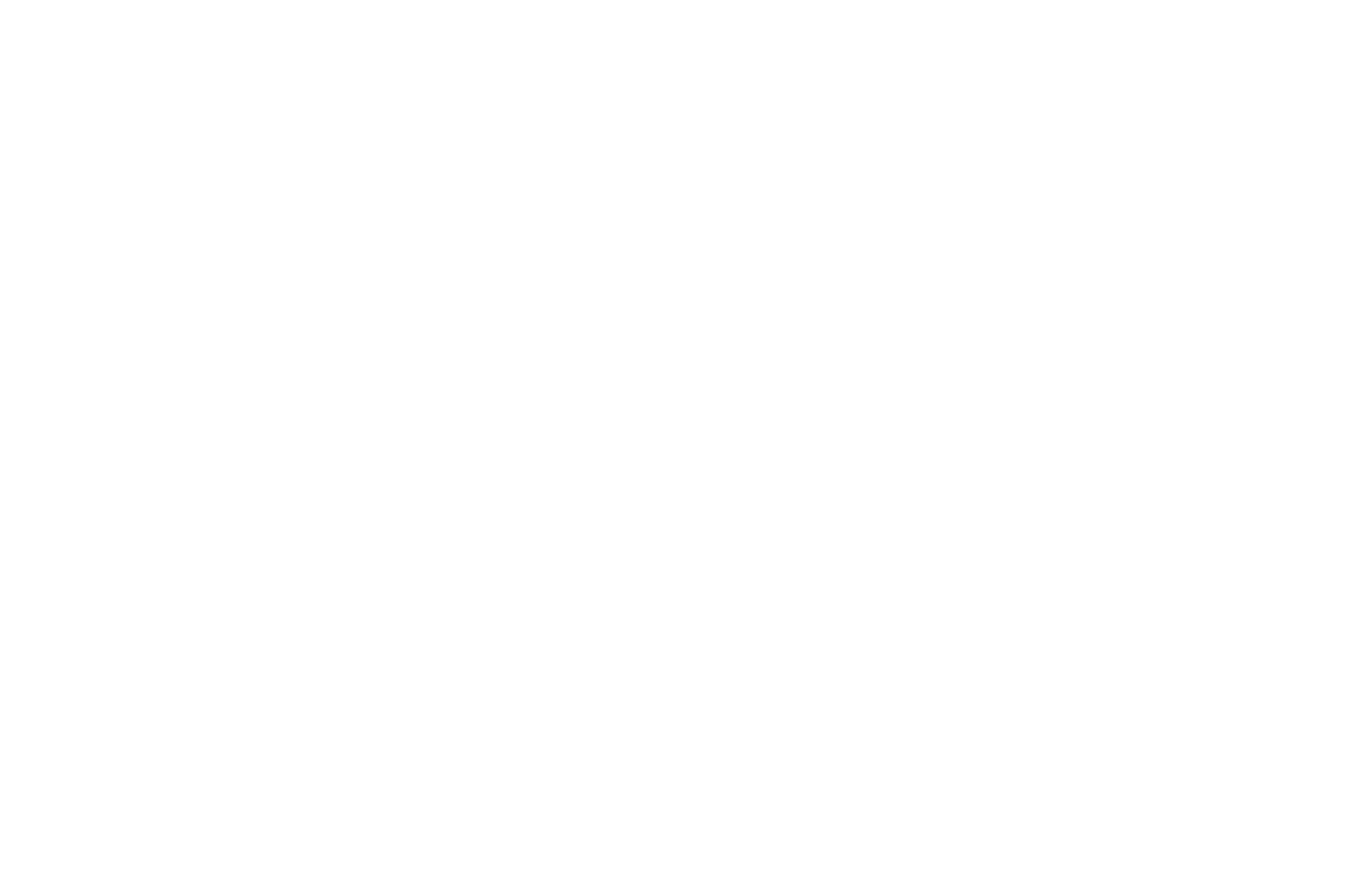

In Ears Digital verified rear backplate outline showing connector placement and printed labels
Reference rear layout · Open the full-size backplate drawing ↗. Scroll horizontally to inspect the drawing on a small screen.

The drawing shows the reference connector layout, not every connection on each internal device. Final routing, cable types and regional equipment variants are confirmed for your build.
